5V 2A Type-C Lithium Battery Charger Boost Module

FEATURES

PRO-POWER INTEGRATED MODULE
Experience seamless energy conversion with our compact 2A integrated module, featuring Type-C input and industry-leading 95.9% peak boost efficiency for professional electronics.

PEAK POWER EFFICIENCY
Achieve record-breaking efficiency up to 95.9% with our synchronous rectification architecture, minimizing heat generation while maximizing the operational lifespan of your energy cells.

DUAL CELL COMPATIBILITY
Versatility is built-in with adjustable solder points allowing easy switching between 4.2V and 4.35V modes, ensuring compatibility with various cell chemistries.

ULTRA COMPACT ARCHITECTURE
Measuring only 25x20mm, this module fits into the tightest enclosures, making it perfect for custom DIY power banks and small-scale portable electronic projects.

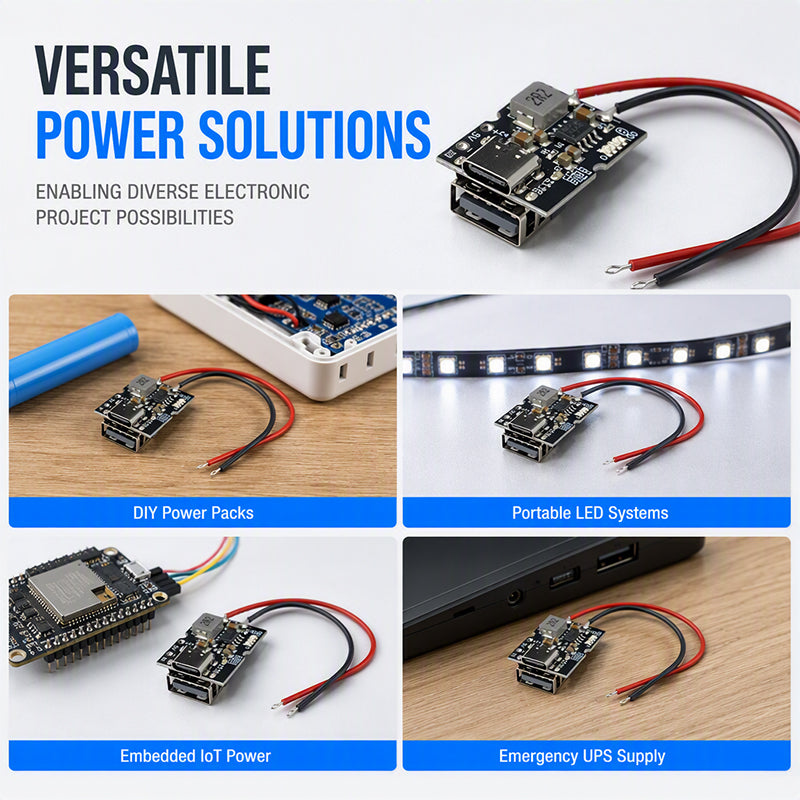

VERSATILE POWER SOLUTIONS
From portable lighting to IoT device power management, this module serves as a reliable core for various high-performance energy storage and supply needs.

SPEC

Color: Black

Size: 25mm (0.98 inches) x 20mm (0.79 inches)

Style: Solder-free style, Wireless style, Wired style

Input Voltage Range: 5V - 5.5V

Charge Cut-off Voltage: 4.2V / 4.35V (±0.5%)

Charge Current: 2.4A (±5%)

Boost Output Voltage: 5V - 5.15V

Boost Output Current: 2A

Boost Conversion Efficiency: 92.5% (3.6V Input, 5V 2A Output)

Battery Quiescent Current: <30uA

Boost Output Ripple: 100mV

PACKAGE INCLUDES

3 x Integrated Charge-Discharge Modules (For 3-Piece Pack)

5 x Integrated Charge-Discharge Modules (For 5-Piece Pack)

NOTES

Ensure the power is completely disconnected before adjusting the charging voltage solder joints.

The USB-A female socket on the back requires manual soldering by the user before use.

Observe correct polarity when connecting the battery and load to avoid circuit damage.
